Gas spring 20-40 Stroke 300



£159.17 £132.64 excl. VAT

In stock
Rod diameter 20mm 0.79″
Cylinder diameter 40mm 1.57″
Stroke 300mm 11.81″
Length 716mm 28.19″
Force 300 – 5000N 67.4 – 1,124.0 lbs.
Thread M14 x 1.5
Progression 44.0%
Material Steel
View this gas spring in our configurator.
DiscountPrice per unit
1 - 50%£159.17
6 - 103%£154.39
11 - 255%£151.21
26 - 507%£148.03
51+10%£143.25
Category:
White Pixel
Gas spring 20-40 Stroke 300
Download CAD file
Mounting parts

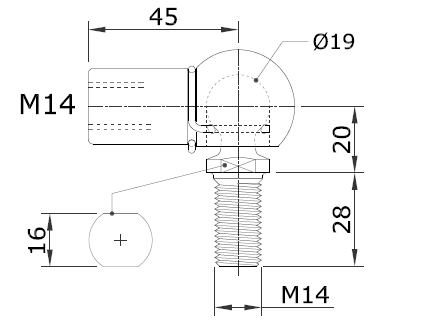

M14 Axial elbow
£13.07 £10.89 excl. VAT
M14 Fork
£12.82 £10.68 excl. VAT
M14 Fork with mounting flange
£31.36 £26.13 excl. VAT
M14 Elbow
£15.02 £12.52 excl. VAT
M14 Elbow with flange
£33.56 £27.97 excl. VAT
M14 Eye 42mm (14mm thickness, hole 14.1mm)
£7.84 £6.53 excl. VAT
M14 Eye and bearing shoe
£48.41 £40.34 excl. VAT
M14 Rod end
£7.50 £6.25 excl. VAT
