Gas strut 10-23 Stroke 100 – Stainless Steel 304



£94.60 £78.83 excl. VAT

In stock
Rod diameter 10mm 0.39″
Cylinder diameter 23mm 0.91″
Stroke 100mm 3.94″
Length 245mm 9.65″
Force 80 – 1250N 18.0 – 281.0 lbs.
Thread M8 x 1.25
Progression 40.2%
Material Stainless steel
View this gas spring in our configurator.
DiscountPrice per unit
1 - 50%£94.60
6 - 103%£91.76
11 - 255%£89.87
26 - 507%£87.98
51+10%£85.14
Category:
White Pixel
Gas strut 10-23 Stroke 100 – Stainless Steel 304
Download CAD file
Mounting parts
M8 Fork – Stainless Steel 304
£14.58 £12.15 excl. VAT
M8 Elbow (30mm) - Stainless Steel 304
£18.90 £15.75 excl. VAT
M8 Side bracket with ball – Stainless Steel 304
£33.83 £28.19 excl. VAT

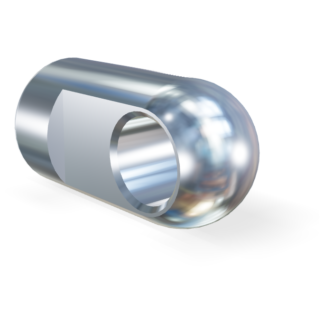

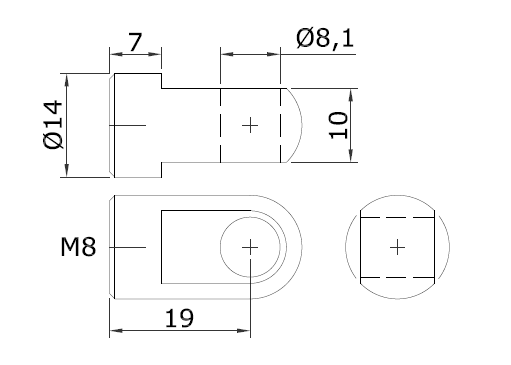

M8 Eye – Stainless Steel 304
£4.74 £3.95 excl. VAT
M8 Eye and bearing shoe – Stainless Steel 304
£32.76 £27.30 excl. VAT

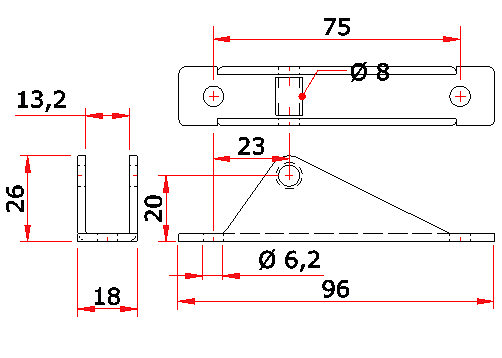

M8 Eye and side bracket – Stainless Steel 304
£20.95 £17.46 excl. VAT
