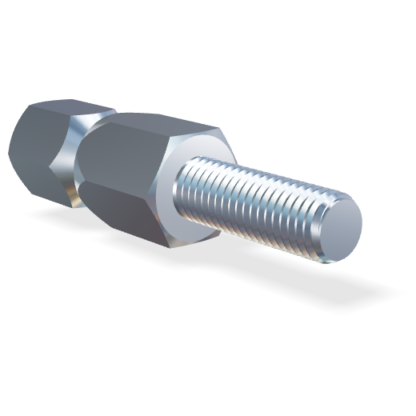

M14 Axial elbow

Axial elbow for a gas spring with 20mm rod diameter and M14x1.5 thread. This axial ball joint can be mounted on both the tube and rod side and has a total length of 96mm. The installation length is 56mm (i.e. measured up to thread of the ball). The maximum angle of the joint is 18 degrees. The maximum tensile force is 100N. Ball diameter 19mm.
